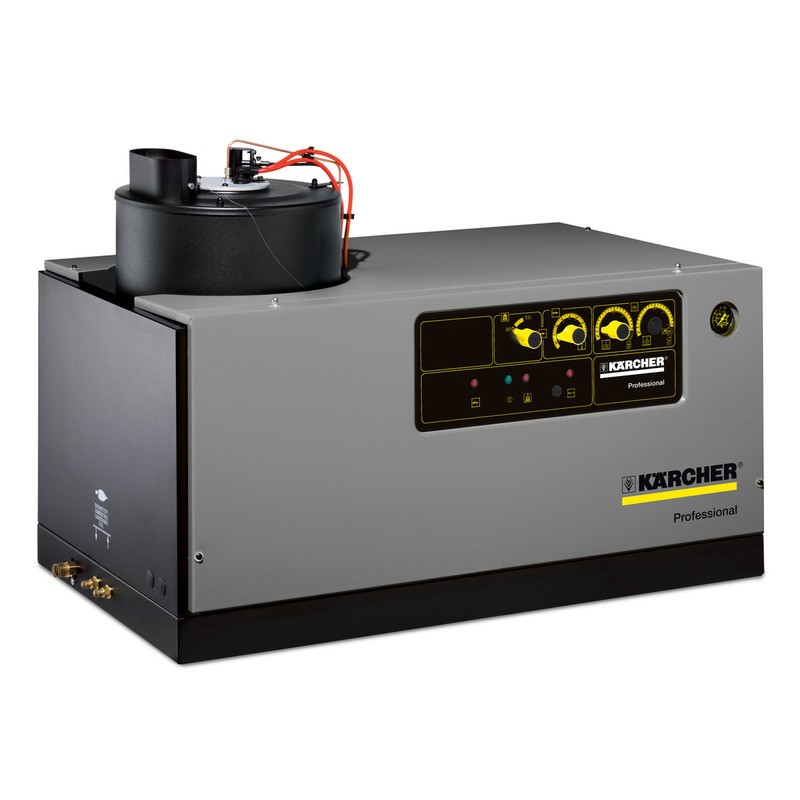

The HDS 9/14-4 ST Eco stationary high-pressure cleaning system offers an extraordinarily high level of safety with its outstanding pressure relief, flue gas temperature monitor, innovative dry run cut-out in the float tank (protecting the pump) and the soft dampening system that reduces vibrations therefore extending the life of the unit. Ideal for cleaning applications where cleaning and disinfecting have to be done regularly to high standards such as in the food industry or in sanitary areas. Used with Eco-Line boilers, these units comply with the latest BimSch emission regulations.

FEATURES AND BENEFITS

Water-cooled 4-pole electric motor (oil-heated)

Long service life. Improved efficiency. Guaranteed quiet operation.

Burner technology (oil-heated)

High heat output. Spiral heating coil for a compact design. Upright design prevents condensation and corrosion.

Water treatment unit

Truckwash Truckwash

Water treatment unit

• Truckwash
• Truckwash

SPECIFICATIONS

Technical data

Current type (Ph/V/Hz)	3 / 400 / 50
Flow Rate (l/h)	500 - 930
Operating pressure (bar/MPa)	30 - 140 / 3 - 14
Temperature (supply 12°C) (°C)	min. 80 - max. 155
Power rating (kW)	6.4
Consumption fuel oil (kg/h)	5.8
Water feed	3/4″
number of simultaneous users	1
Mobility	Stationary
Fuse protection (A)	16
Weight (with accessories) (kg)	146.9
Weight incl. packaging (kg)	151.4
Dimensions (L × W × H) (mm)	1110 x 565 x 690

Scope of supply

• SDS system
• System pressure relief
• Flame monitor
• Ready for Servo Control
• Ready for remote control
