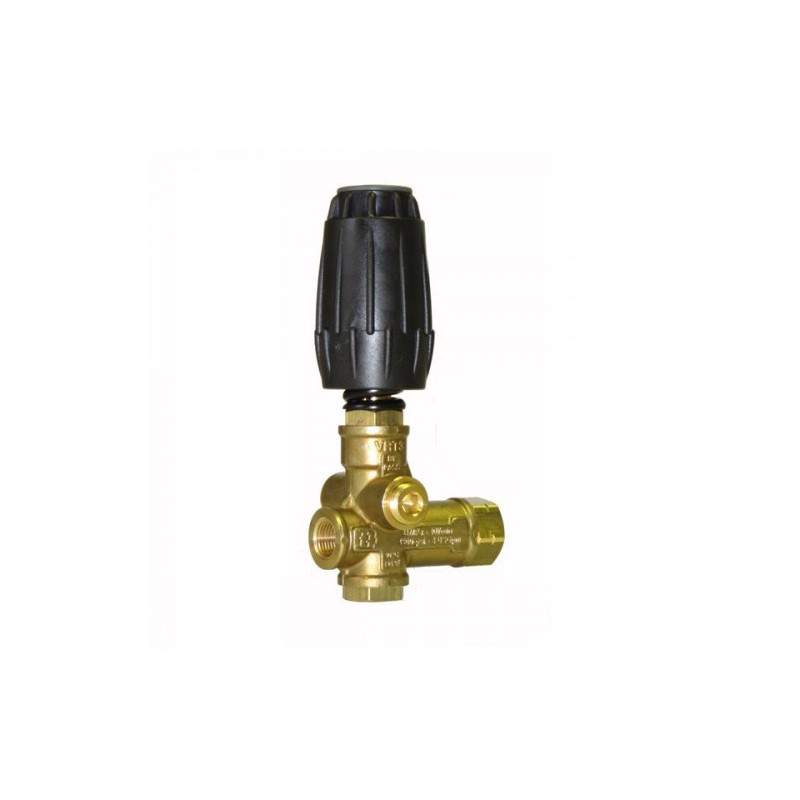

C0.082 - VRT3 Standard Unloader Valve with easy start facilty - Ideal for engine or motor start up as it reduces the intial start load. New replacment for C0.022.

Sturdy steel and brass construction

Adjustable unloader valve bypass for a power washer pump.

• Integrated Easy Start Valve
• Max Pressure: 220 bar / 22 Mpa / 3200 psi
• Permissible Pressure: 250 bar / 25 Mpa / 3650 psi
• Flow Rate: 30 L/min / 8 USGpm
• Max Water Temperature: 90°C / 195 °F
• IMPORTANT SAFETY NOTE: BEFORE powering the system: 1. the unloader valve MUST be set at MINIMUM pressure; 2. The bypass port MUST be open; 3. Then set the unloader to the required pressure (which MUST be LESS than the maximum unloader pressure of the unloader valve AND LESS than the maximum pressure of your equipment); 4. Set the locking nuts so this pressure (the running pressure and the lock line pressure) cannot be exceeded.
• CAUTION: This is high pressure equipment and if the above safety and set up rules are not followed, serious damage to equipment and injury to humans can occur. The caps and joints can be blown clean out of their threads which cause dangerous projectiles
