Karcher HDS 13/20-4 SXA Hot Water Pressure Washer With 20Mtr Retractable Hose Reel 1.071-936.0 1.071-936.0
+
£ 4,150.00 +VAT
£ 4,980.00Inc. VAT
Please Call To Check Availability When Out Of Stock and On Backorder. 01406426513
FREE SHIPPING for orders over £50
30 days MONEY BACK GUARANTEE
Buy in installments from 12 * £ 498.00 Enquire now

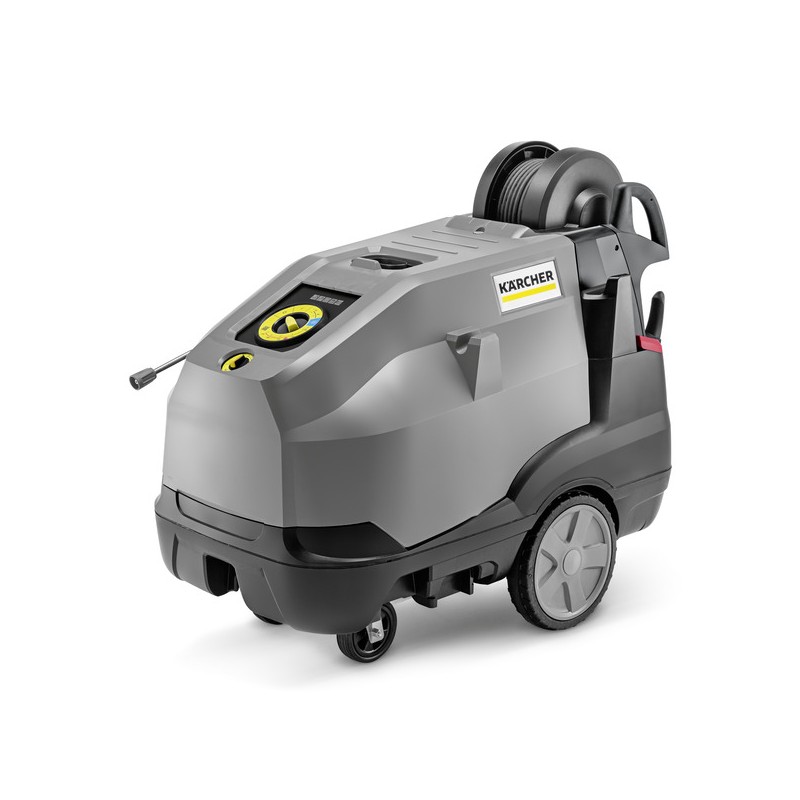

HIGH PRESSURE CLEANER HDS 13/20-4 SXA With 20Mtr Retractable Hose Reel
For maximum performance in the harshest conditions: the super class hot water high-pressure cleaner with 4-pole, water-cooled electric motor and robust 3-piston axial pump.
1.071-936.0
Width: 75.00cm
Height: 106.00cm
Depth: 133.00cm
Information about the product:
Extremely powerful, extremely well equipped, extremely user-friendly - the HDS 13/20-4 SXA hot water high-pressure cleaner with automatic hose reel and integrated Ultra Guard HP hose. The hose reel allows the 20-metre-long, Teflon-coated hose to be wound and unwound at an angle of up to 45° and also reduces the usual set-up time by about half. High-quality components such as the water-cooled 4-pole electric motor, the robust 3-piston axial pump with ceramic piston, optimised burner engineering and the economical eco!efficiency mode ensure maximum durability and economy. Thanks to the energy-saving EASY!Force Advanced HP trigger gun with servo control and 1050 millimetre spray lance with patented nozzle technology, the machine also impresses with its user-friendly ergonomics for fatigue-free work. In addition, the HDS 13/20-4 SXA can be operated intuitively with just one button, is very easy to maintain and is equipped with sophisticated safety components as well as useful storage possibilities for accessories.
FEATURES AND BENEFITS
Automatic hose reel
- Enables set-up times to be reduced by over 50%.
- Allows the hose to be wound and unwound at an angle of up to 45°, even under pressure.
Wide-ranging accessories with EASY!Lock
- EASY!Force Advanced for fatigue-free work without any holding force.
- Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.
- Rotating 1050 mm stainless steel lance.
High efficiency
- In eco!efficiency mode, the machine operates in the most economical temperature range (60 °C) – with full water flow.
- The burner cycles are optimised to reduce fuel consumption by 20% compared to full load operation.
Maximum efficiency
- Highly efficient, tried-and-tested "Made in Germany" burner technology.
- 4-pole electric motor with 3-piston axial pump.
- Water-cooled motor for a high performance and long service life.
Operational safety
- Easy-to-access water filter protects the pump against dirt particles in the water.
- Safety valves, water shortage and fuel protection ensure the availability of the machine.
- The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
Multiple storage spaces for accessories integrated into the machine
- On-board storage for full range of accessories. Includes 2 hooks for suction hose and power cord.
- Spacious storage compartment, e.g. for detergents, gloves or tools.
Detergent dosing
- Easy to switch between detergent tank 1 and 2.
- Precise detergent dosing unit with rinse function.
- Precise dosing valve ensures low consumption.
Mobility concept
- "Jogger" design with large rubber wheels and steering roller.
- Integrated tipping trough for effortless transport over ledges.
- Push handles for simple transport and manoeuvrability.
Easy to use controls
- Steam stage can be selected by means of infinitely variable regulation of water pressure/quantity at the pump.
- Simple and intuitive 1-button operation.
SPECIFICATIONS
Technical data
| Current type (Ph/V/Hz) | 3 / 400 / 50 |
| Flow Rate (l/h) | 600 - 1300 |
| Operating pressure (bar/MPa) | 30 - 200 / 3 - 20 |
| Temperature (supply 12°C) (°C) | min. 80 - max. 155 |
| Consumption fuel oil (kg/h) | 9.5 |
| Heating oil consumption, eco!efficiency (kg/h) | 7.6 |
| Power rating (kW) | 9.5 |
| Power cable (m) | 5 |
| Fuel tank (l) | 25 |
| Weight (with accessories) (kg) | 198 |
| Weight incl. packaging (kg) | 210.2 |
| Dimensions (L × W × H) (mm) | 1330 x 750 x 1210 |
Scope of supply
- Trigger gun: EASY!Force Advanced
- High-pressure hose: 20 m, ID 8, 315 bar
- Spray lance: 1050 mm
- Power nozzle
Equipment
- integrated automatic hose reel
- Pressure switch control
- Optional two-lance operation
- Pole reversing plug (three-phase)
- SDS system
- Two detergent tanks
- Dry running protection
APPLICATION AREAS
- Vehicle cleaning
- Device and machine cleaning
- Workshop cleaning
- Cleaning outdoor spaces
- Service station cleaning
- Façade cleaning
- Swimming pool cleaning
- Cleaning of sports facilities
- Cleaning during production processes
- Cleaning of production facilities
